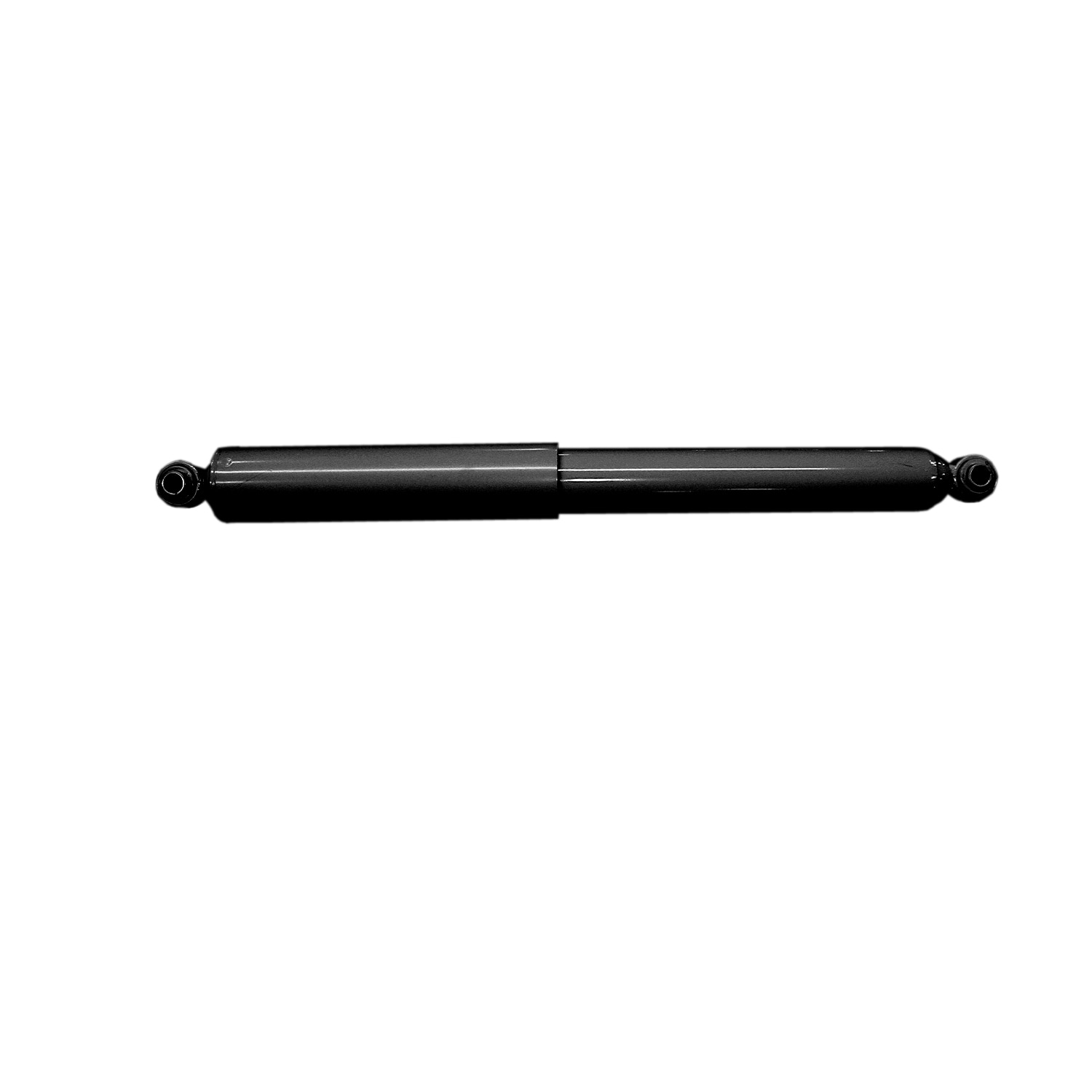

ACDelco Professional Premium Gas Charged Rear Shock Absorber

About this product

ACDelco Professional Premium Gas Charged Shocks are twin-tube passive replacement shocks for passenger cars, vans, SUVs, and light trucks. These shocks have a high pressure nitrogen gas charge along with chrome finished piston rods and drawn over mandrel (DOM) pressure cylinders. For additional ride support, ACDelco Professional Premium Gas Charged Shocks utilize premium Road Response Valving Technology that automatically adjusts to provide comfort and extra control by responding to changing road conditions during normal driving situations, and improved handling under extreme road conditions.

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

A hardened, chromed piston rod with micro cracks provides an ultra-smooth, self-lubricating, corrosion- and scratch-resistant surface, helping increase seal life
Drawn over mandrel (DOM) pressure cylinder for high quality sealing properties and reduced internal friction to assist with longer product life
Gas charged for reduced fluid aeration, which can result in better response, less foaming, and more consistent control than non-gas charged shocks
Full perimeter, multi-lip, piston rod seal is permanently lubricated and helps keep dirt and contaminates from reaching the interior of the rod
O-ring hydraulic piston seal resulting in minimized piston blow-by and consistent control
Infinitely variable damping for on-demand control on all road conditions
Valve design performance that is independent of ride height reduces the potentially negative effects of vehicle loads or weak spring conditions

Gas ChargedYes

Grade TypePremium

Body Diameter2 in / 50.8 mm

Boot IncludedYes

Travel Length9.53 in / 242.06 mm

Compressed Length14.98 in / 382.27 mm

Shock Absorber Body End Measuring PointCenter Eye

Mounting Hardware IncludedNo

ClassificationGold

Shock Stroke242.06mm

Weight5.82lb

Shock Absorber Rod End Measuring PointCenter Eye

Gas ChargedYes

Body Diameter2 in / 50.8 mm

Travel Length9.53 in / 242.06 mm

Shock Absorber Body End Measuring PointCenter Eye

ClassificationGold

Weight5.82lb

Grade TypePremium

Boot IncludedYes

Compressed Length14.98 in / 382.27 mm

Mounting Hardware IncludedNo

Shock Stroke242.06mm

Shock Absorber Rod End Measuring PointCenter Eye

12 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)

Please visit our warranty page on Gmparts.com for full warranty details.

To inspect your shocks and struts to gauge wear, check for:

Brakes
Tie rods
Ball joints
Tires
Leaking oil or wetness along the body of the shock or strut.
Broken mounts, worn or missing bushings.
Broken, damaged, or missing mounting hardware.
Severely dented reservoir tube, bent or scratched piston rod.
Cupped tire wear.
Damaged strut body springs, seats, and bushings.
Defective strut bearing or missing plate.

Uneven patches of wear on the edges of your tire can be a sign of weak ride control (shocks or struts). This wear, called cupping, appears as scalloped dips around the surface of the tread. Other signs it could be time to replace your shocks or struts include:

There is excessive nose dive while braking
Your vehicle has 'acceleration squat'
Your vehicle does not return to a neutral position
Your steering pulls
There is a strut mount or bearing noise
Your ride is harsh, bumpy or shaky
Your vehicle bounces excessively
Your vehicle veers in side winds
Your vehicle leans or sways while turning
Your vehicle bounces excessively after hitting a bump
Your vehicle bottoms out
If your vehicle's height seems lower than normal when measured
If you notice fluid leakage from your vehicle's shocks or struts
If your vehicle's shocks or struts have dented or heavily scratched housings or mounts

Model	Body Style	Trim	Year(s)
Sierra 1500			1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
Sierra 1500 Classic			2007

About this product

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

A hardened, chromed piston rod with micro cracks provides an ultra-smooth, self-lubricating, corrosion- and scratch-resistant surface, helping increase seal life
Drawn over mandrel (DOM) pressure cylinder for high quality sealing properties and reduced internal friction to assist with longer product life
Gas charged for reduced fluid aeration, which can result in better response, less foaming, and more consistent control than non-gas charged shocks
Full perimeter, multi-lip, piston rod seal is permanently lubricated and helps keep dirt and contaminates from reaching the interior of the rod
O-ring hydraulic piston seal resulting in minimized piston blow-by and consistent control
Infinitely variable damping for on-demand control on all road conditions
Valve design performance that is independent of ride height reduces the potentially negative effects of vehicle loads or weak spring conditions

Gas ChargedYes

Grade TypePremium

Body Diameter2 in / 50.8 mm

Boot IncludedYes

Travel Length9.53 in / 242.06 mm

Compressed Length14.98 in / 382.27 mm

Shock Absorber Body End Measuring PointCenter Eye

Mounting Hardware IncludedNo

ClassificationGold

Shock Stroke242.06mm

Weight5.82lb

Shock Absorber Rod End Measuring PointCenter Eye

Gas ChargedYes

Body Diameter2 in / 50.8 mm

Travel Length9.53 in / 242.06 mm

Shock Absorber Body End Measuring PointCenter Eye

ClassificationGold

Weight5.82lb

Grade TypePremium

Boot IncludedYes

Compressed Length14.98 in / 382.27 mm

Mounting Hardware IncludedNo

Shock Stroke242.06mm

Shock Absorber Rod End Measuring PointCenter Eye

12 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)

Please visit our warranty page on Gmparts.com for full warranty details.

To inspect your shocks and struts to gauge wear, check for:

Brakes
Tie rods
Ball joints
Tires
Leaking oil or wetness along the body of the shock or strut.
Broken mounts, worn or missing bushings.
Broken, damaged, or missing mounting hardware.
Severely dented reservoir tube, bent or scratched piston rod.
Cupped tire wear.
Damaged strut body springs, seats, and bushings.
Defective strut bearing or missing plate.

Uneven patches of wear on the edges of your tire can be a sign of weak ride control (shocks or struts). This wear, called cupping, appears as scalloped dips around the surface of the tread. Other signs it could be time to replace your shocks or struts include:

There is excessive nose dive while braking
Your vehicle has 'acceleration squat'
Your vehicle does not return to a neutral position
Your steering pulls
There is a strut mount or bearing noise
Your ride is harsh, bumpy or shaky
Your vehicle bounces excessively
Your vehicle veers in side winds
Your vehicle leans or sways while turning
Your vehicle bounces excessively after hitting a bump
Your vehicle bottoms out
If your vehicle's height seems lower than normal when measured
If you notice fluid leakage from your vehicle's shocks or struts
If your vehicle's shocks or struts have dented or heavily scratched housings or mounts

Model	Body Style	Trim	Year(s)
Sierra 1500			1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
Sierra 1500 Classic			2007

Frequently Asked Questions

Yes, though shocks and struts perform a similar function, they vary greatly in their design. Struts are an integral part of a vehicle's suspension system, providing structural support for the vehicle and, as such, are a safety subsystem. Shocks work separately from any structural function, simply absorbing and damping the bumps from the road.

Yes, all shocks and struts use hydraulic fluid (oil) to control damping. A gas charged shock or strut uses high-pressure nitrogen gas to reduce oil foaming during high-speed damping, and therefore maintains performance.

Yes, it is possible to do a quick check at home for wear on your vehicle's shocks or struts. You can look for any physical damage to the shock or strut housing or any leaking - this is especially common on rear units that tend to have stones kicked up by the front wheels. You can also perform a bounce test by taking each corner of the vehicle and pushing down hard. The corner should drop, rise and settle again. If the body continues to move up and down, there's a good chance your shocks need to be replaced. Though these home tests can indicate worn shocks or struts, it is also recommended that you take your vehicle to a qualified service technician and let them do a thorough inspection every 12 months or 12,000 miles.

Yes, if you are replacing your vehicle's struts. However, it is not necessary to get your vehicle aligned when replacing your vehicle's shocks unless there was or is a previous issue.

Yes, it is important to choose the correct shock or strut for your vehicle model and year, as well as for the location in the vehicle.

About this product

Product details

Specifications

Warranty

Maintenance

To inspect your shocks and struts to gauge wear, check for:

Uneven patches of wear on the edges of your tire can be a sign of weak ride control (shocks or struts). This wear, called cupping, appears as scalloped dips around the surface of the tread. Other signs it could be time to replace your shocks or struts include:

Fits these vehicles

About this product

Product details

Specifications

Warranty

Maintenance

To inspect your shocks and struts to gauge wear, check for:

Uneven patches of wear on the edges of your tire can be a sign of weak ride control (shocks or struts). This wear, called cupping, appears as scalloped dips around the surface of the tread. Other signs it could be time to replace your shocks or struts include:

Fits these vehicles

Frequently Asked Questions

Is there a difference between a shock and a strut?

Do gas charged shocks or struts contain oil?

Can I check my vehicle's shocks for wear?

Should I have my vehicle aligned after replacing my shocks or struts?

Do I need different shocks for front, rear, left, or right applications?
