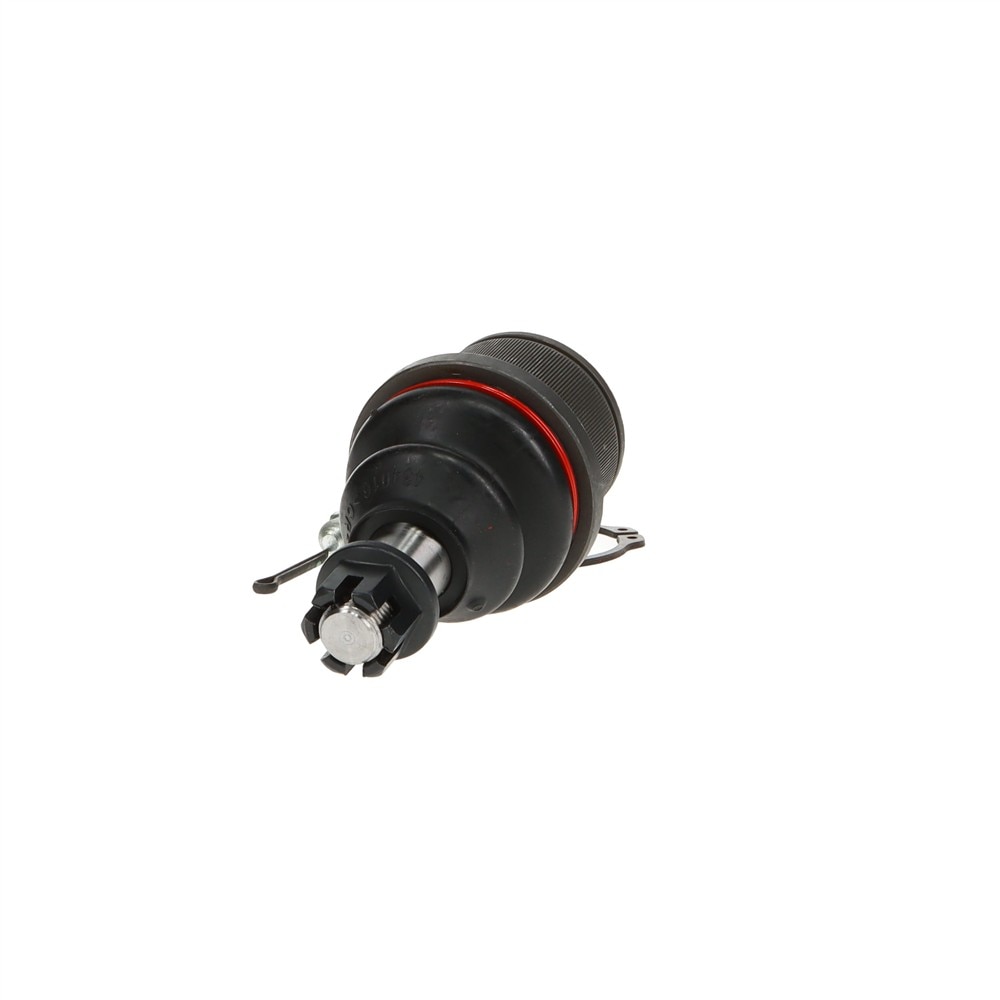

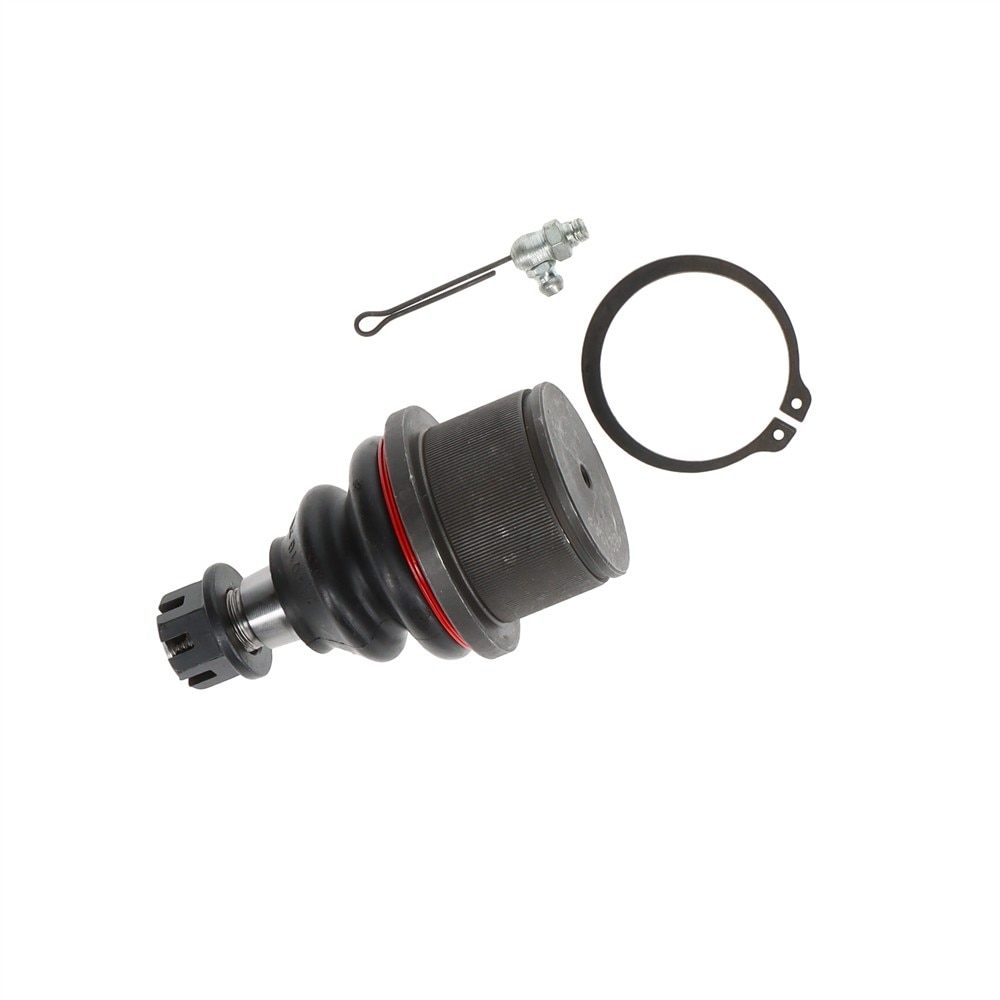

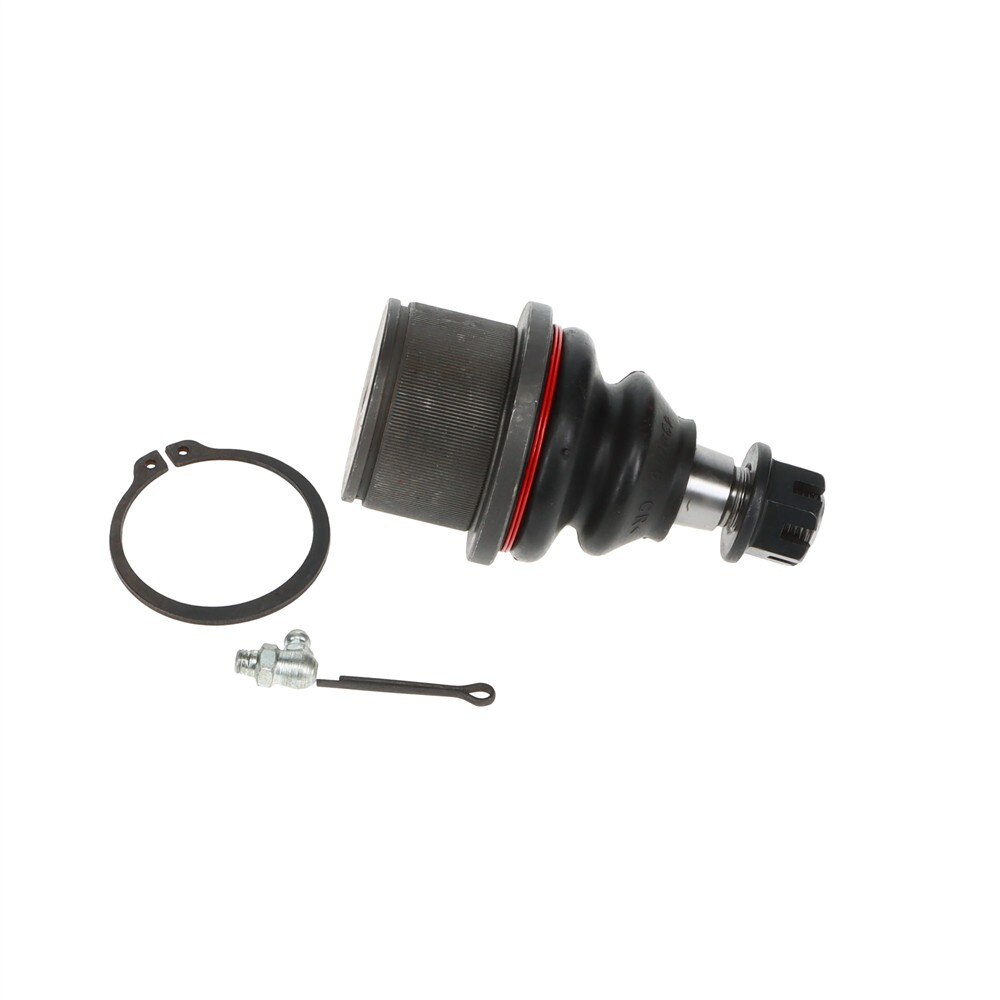

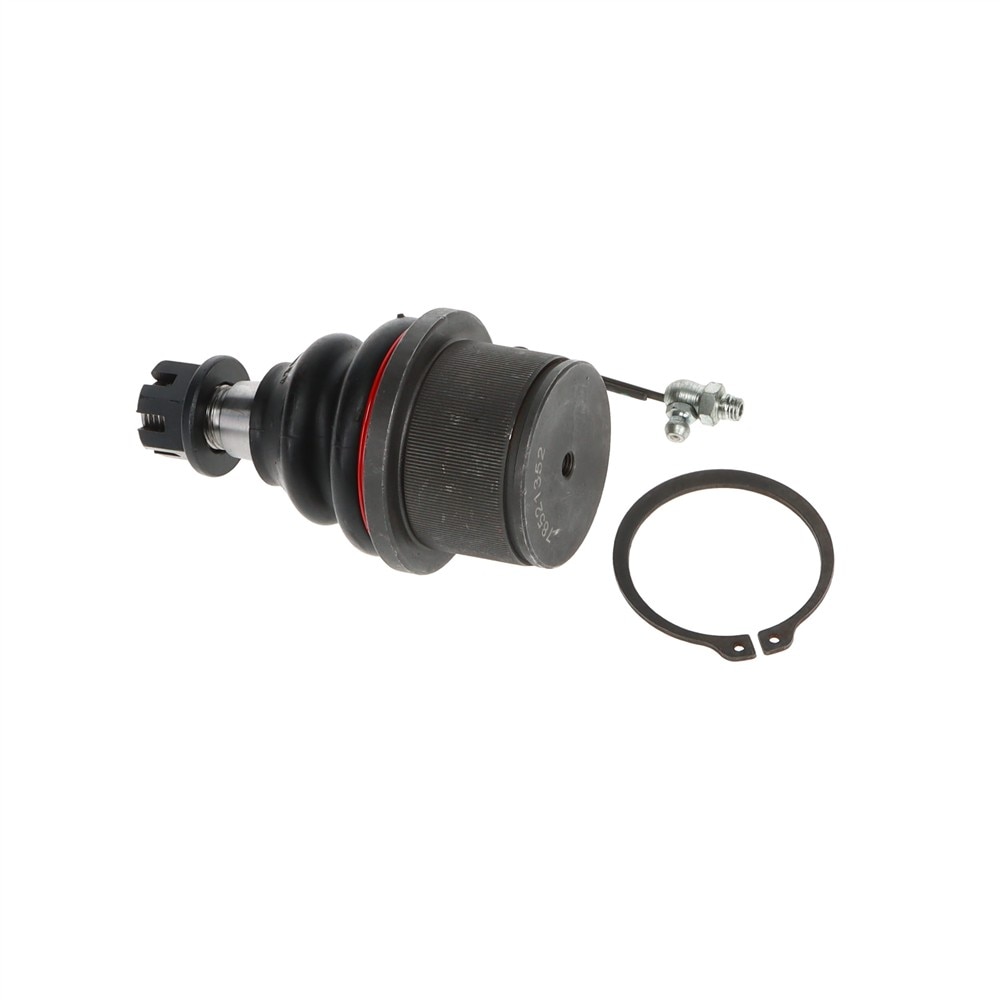

ACDelco Silver Front Lower Suspension Ball Joint
Silver

ACDelco Silver Front Lower Suspension Ball Joint

GM Part #19460572

ACDelco Part #46D2349A

MSRP$91.78*

ACDelco Silver (Advantage) Suspension Ball Joints are a quality, high value alternative for General Motors vehicles as well as most makes and models and are backed by General Motors.

  • Manufactured at ISO 9001-certified facilities
  • Greaseable where applicable
  • Some ACDelco Silver parts may have formerly appeared as ACDelco Advantage

About this product

ACDelco Silver (Advantage) Suspension Ball Joints are a quality, high value alternative for General Motors vehicles as well as most makes and models and are backed by General Motors. These suspension ball joints connect your vehicle's control arm to its steering knuckle, and feature a polychloroprene (neoprene) dust boot on most applications, and one-piece housing. It also includes studs and all hardware. ACDelco Silver (Advantage) parts are a good choice for many vehicles on the road today. Some ACDelco Silver parts may have formerly appeared as ACDelco Advantage.

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • Manufactured at ISO 9001-certified facilities
  • Greaseable where applicable
  • Some ACDelco Silver parts may have formerly appeared as ACDelco Advantage
  • Economical value with dependable quality
  • For General Motors vehicles as well as most makes and models

Mounting Hardware IncludedYes
AdjustableNo
Bushings IncludedNo
MaterialSteel
Length5.2 in / 132.1 mm
Height3.2 in / 81.28 mm
Width4 in / 101.6 mm
ClassificationSilver
Grease Fitting IncludedYes
Cotter Pin IncludedYes
Stud TypeThreaded
Ball Joint AssemblyYes
GreasableYes
Cotter Pin HoleYes
Dust BootYes
Castle Nut IncludedNo
Stud Tapered End 1 Diameter0.917in
Stud Tapered End 2 Diameter0.728in
Maximum Outside Diameter2.5in

12 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)

Please visit our warranty page on Gmparts.com for full warranty details.

Inspect or have your ball joints inspected for signs of wear. Over time, lubrication inside the ball joint can dry out, leading to joint wear. Even sealed ball joints can be exposed to air, and if the ball joint's protective boot is damaged, dirt and debris could further harm the function and life of the joint. Exposure to harsh driving conditions like pot holes, bumpy road surfaces, or road salt may also cause ball joints to fail. Worn ball joints could result loss of vehicle control or tire damage. Inspect your ball joints regularly, following exposure to events that may harm the component, or when you experience signs of ball joint wear.

  • Use new components during installation. If you replace your vehicle's ball joints, make sure to use new mounting hardware, rather than reusing the old.
  • Avoid replacing only one ball joint at a time. If you choose to replace a ball joint, you should consider replacing ball joints as a set to make alignment easier.
  • Installing a new ball joint can interfere with the alignment of your vehicle. Perform a full four-wheel vehicle alignment after any ball joint replacement.

Troubleshooting Tips:

  • Tire wear: as ball joints wear, they allow the front wheels of your vehicle to point outward and away from each other in a 'toe-out' position. This position will result in uneven wear on one side of your tire that feathers across the tread toward its center. Worn ball joints may also be signaled by a more extreme variation of uneven tire wear, called camber wear, where the tire leans in or out at the top, and a hard line of excess wear is seen along one edge of your vehicle's tire.
  • Alignment issues: an inability to set your vehicle's alignment to proper specifications may be a sign of ball joint wear.

ModelBody StyleTrimYear(s)
Savana 25002003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020
Savana 35002003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020
Savana 45002009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019

Frequently Asked Questions

Yes. ACDelco Advantage Chassis parts are for both GM and non-GM vehicle applications.

Yes. You should replace your ball joints as a set to make front end alignment easier.

Yes. Installing new ball joints can interfere with the alignment of your vehicle, so a full four-wheel vehicle alignment is recommended following ball joint replacement.
