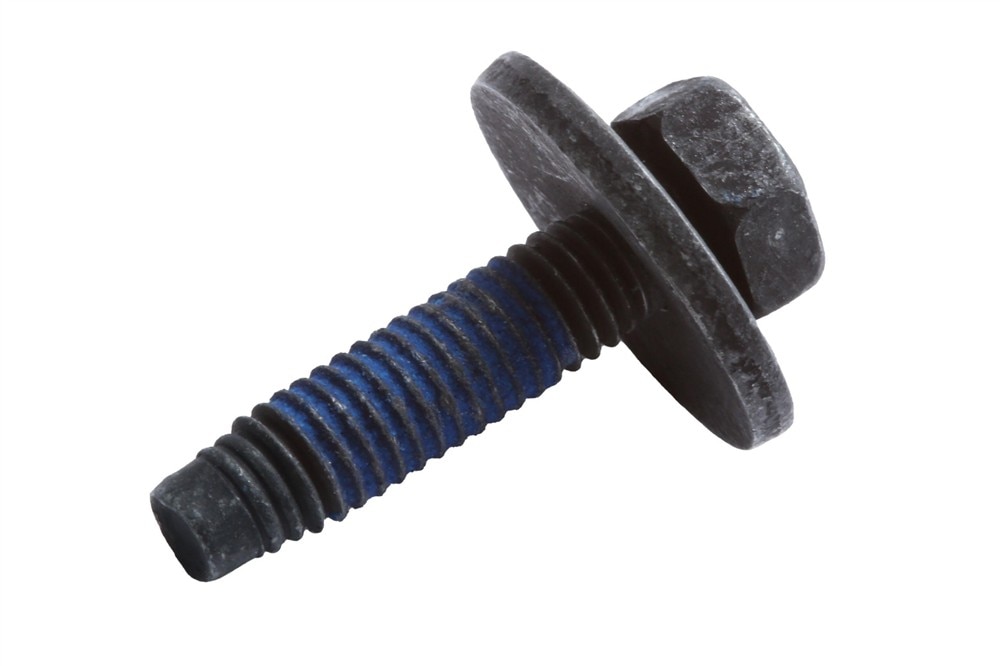

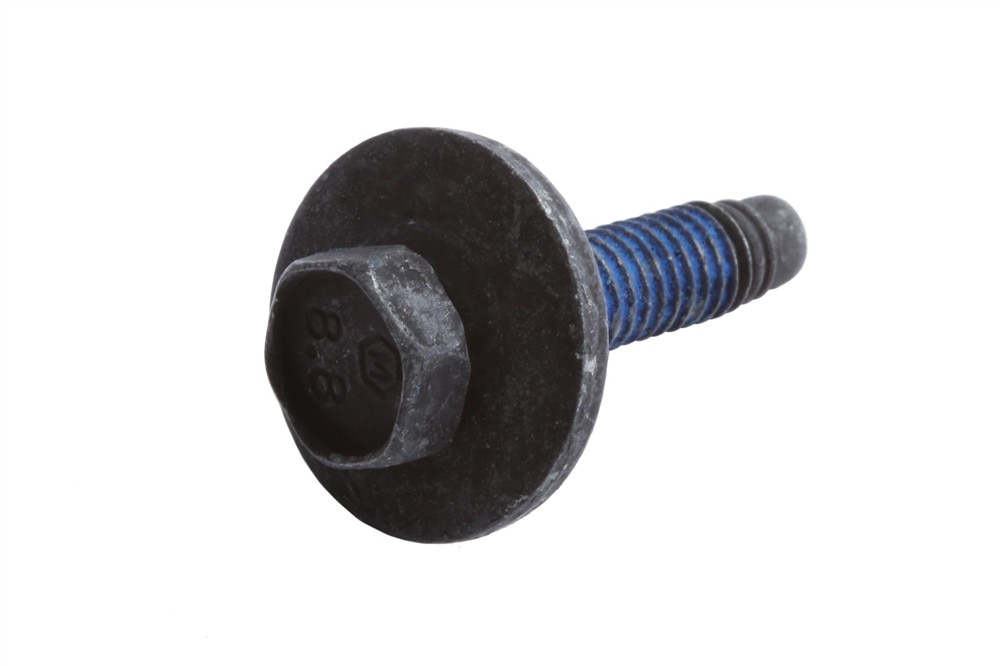

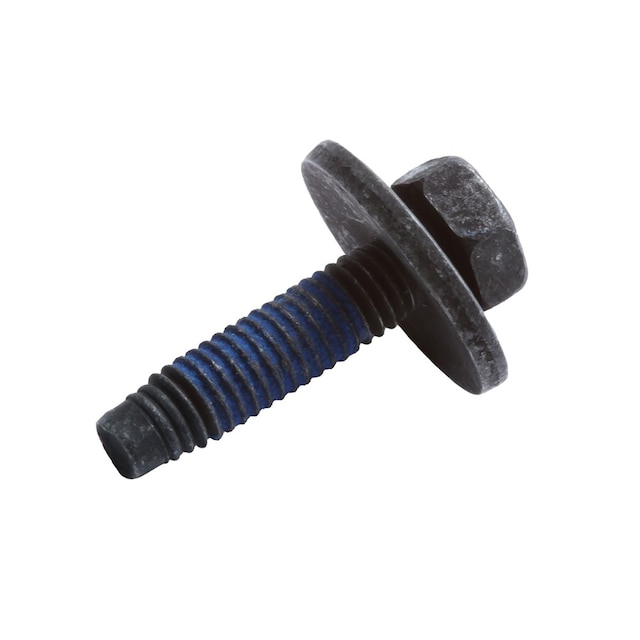

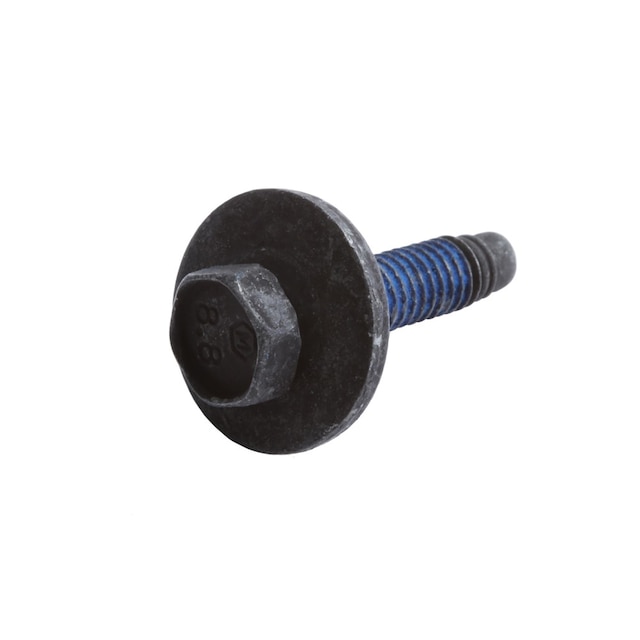

GM Genuine Parts Front End Sheet Metal Diagonal Brace Bolt
OE
Pack of 1

GM Genuine Parts Front End Sheet Metal Diagonal Brace Bolt

GM Part #11549226

MSRP$9.30*

GM Genuine Parts Radiator Support Baffle Bolts are designed, engineered, and tested to rigorous standards, and are backed by General Motors.

  • Helps secure and attach your vehicle's radiator support baffle
  • Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE)
  • GM Genuine Parts are designed, engineered and tested to rigorous standards, and are backed by General Motors

Pack of 1

About this product

GM Genuine Parts Radiator Support Baffle Bolts are designed, engineered, and tested to rigorous standards, and are backed by General Motors. These Radiator Support Baffle Bolts help secure and attach your vehicle's radiator support baffle. GM Genuine Parts are the true OE parts installed during the production of or validated by General Motors for GM vehicles. Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE).

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • Helps secure and attach your vehicle's radiator support baffle
  • Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE)
  • GM Genuine Parts are designed, engineered and tested to rigorous standards, and are backed by General Motors
  • GM Engineers design and validate OE parts specifically for your Chevrolet, Buick, GMC, or Cadillac vehicle
  • GM regularly updates production and service part designs to integrate new materials and technologies

MaterialSteel
Thread TypeMedium
Head TypeHex
Attached WasherYes
Heat HardenedYes
SpecialtyNo
TypeHex
SAE or MetricMetric
FinishZinc Plated
Self TappingNo
Head ShapeHex Washer
Head Diameter0.79 in / 20 mm
Thread Length0.75 in / 19.15 mm
Head Tool Size10
ClassificationOE
ColorBlack
Bolt Grade6H

24 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)

Please visit our warranty page on Gmparts.com for full warranty details.

Before the purchase and installation of a radiator support baffle bolt, make sure it is the correct fit for your vehicle.

  • Refer to your Vehicle Owner's manual for additional vehicle maintenance practices.

Signs of wear or damage for radiator support baffle bolts include but are not limited to:

  • Loose or misaligned baffle

ModelBody StyleTrimYear(s)
Sierra 15002016, 2017, 2018
Sierra 1500 Limited2019
Sierra 2500 HD2016, 2017, 2018, 2019
Sierra 3500 HD2016, 2017, 2018, 2019
Yukon2016, 2017, 2018, 2019, 2020
