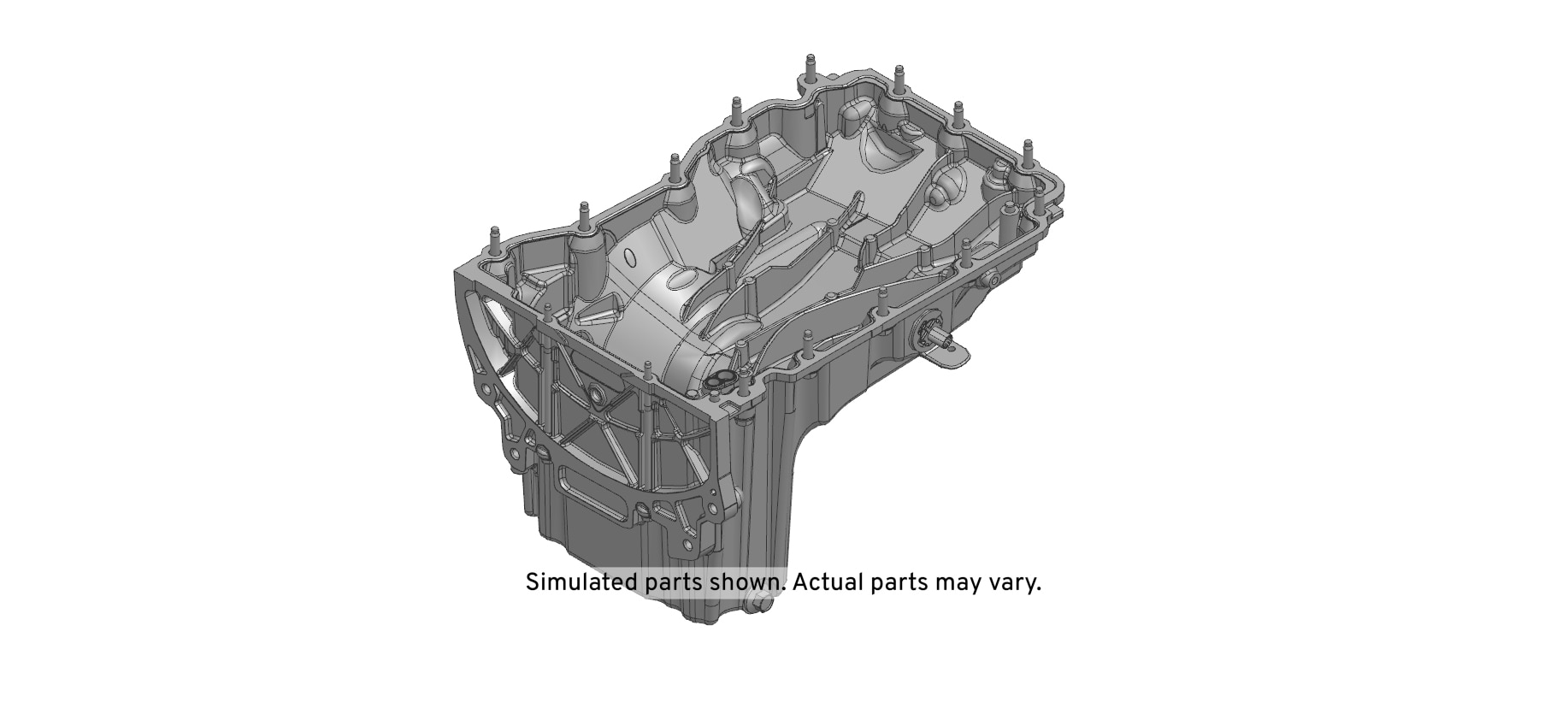

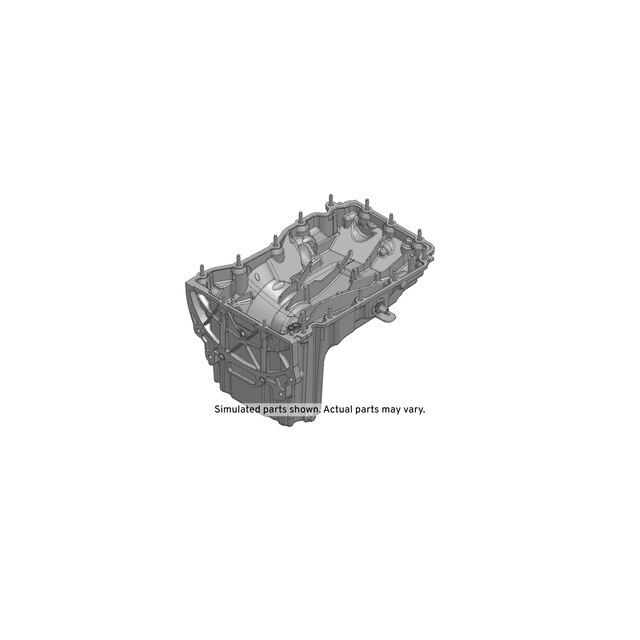

GM Genuine Parts Oil Pan
GM Part #12716566
ACDelco Part #12716566
About this product
GM Genuine Parts Engine Oil Pans are designed, engineered, and tested to rigorous standards, and are backed by General Motors. GM Genuine Parts are the true OE parts installed during the production of or validated by General Motors for GM vehicles. Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE).
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE)
- GM Genuine Parts are designed, engineered and tested to rigorous standards, and are backed by General Motors.
- GM Engineers design and validate OE parts specifically for your Chevrolet, Buick, GMC, or Cadillac vehicle
- GM regularly updates production and service part designs to integrate new materials and technologies
Gasket Or Seal IncludedNo
ColorGray
MaterialAluminum
ClassificationOE
Length17.67 in / 448.71 mm
Minimum Depth2.93in
BaffledNo
Windage Tray IncludedNo
Pickup IncludedNo
Sump LocationRear
Crank Shaft Wiper IncludedNo
Drain Plug IncludedYes
Dipstick PortYes
Engine Oil Cooler Return FittingNo
Oil Level Sensor PortYes
Maximum Width13.18 in / 334.86 mm
Maximum Depth10.6 in / 269.13 mm
Mounting Hole Quantity15
Gasket Or Seal IncludedNo
MaterialAluminum
Length17.67 in / 448.71 mm
BaffledNo
Pickup IncludedNo
Crank Shaft Wiper IncludedNo
Dipstick PortYes
Oil Level Sensor PortYes
Maximum Depth10.6 in / 269.13 mm
ColorGray
ClassificationOE
Minimum Depth2.93in
Windage Tray IncludedNo
Sump LocationRear
Drain Plug IncludedYes
Engine Oil Cooler Return FittingNo
Maximum Width13.18 in / 334.86 mm
Mounting Hole Quantity15
24 Months/Unlimited Miles Limited Warranty for Parts (plus Labor if installed by a GM dealer)
Please visit our warranty page on Gmparts.com for full warranty details.
