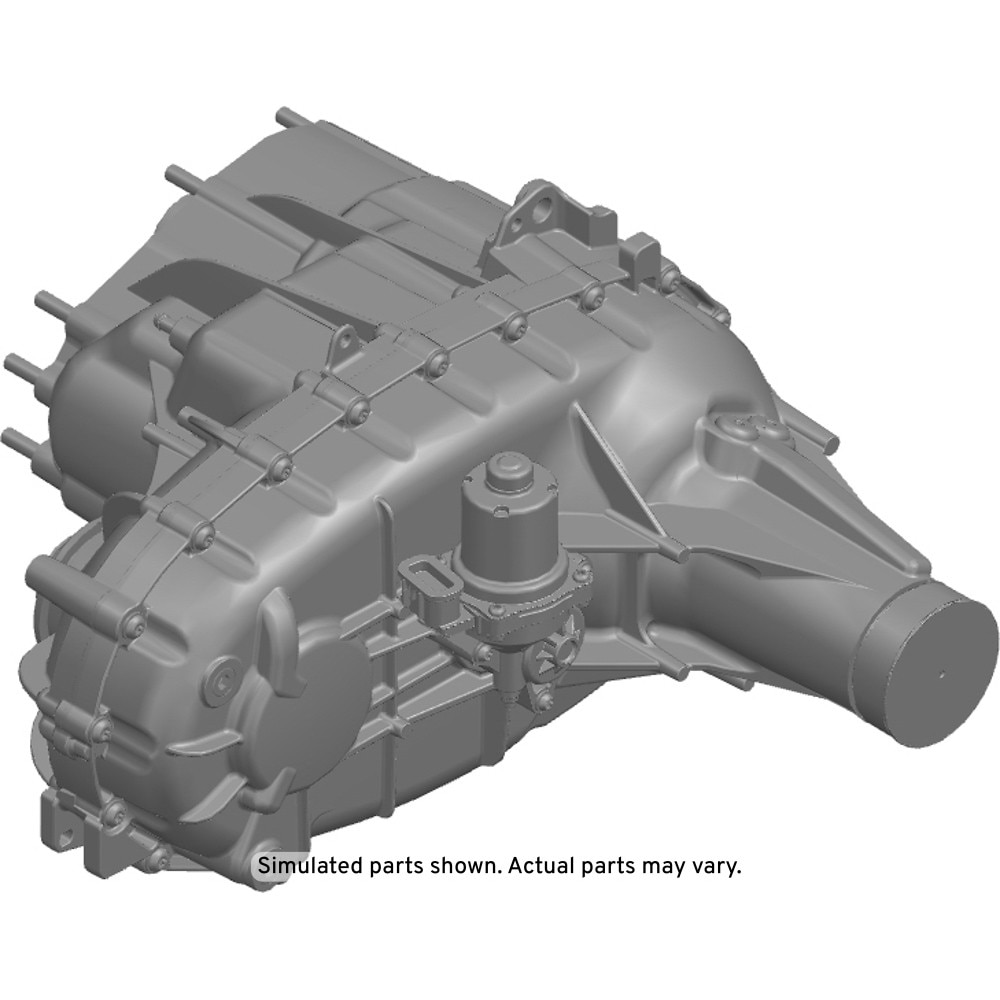

GM Genuine Parts Transfer Case Assembly

About this product

GM Genuine Parts Transfer Case Assemblies are designed, engineered, and tested to rigorous standards, and are backed by General Motors. As an important part of the drivetrain for four-wheel drive systems, transfer cases are responsible for engaging and disengaging four-wheel drive. This two speed, part time, manual shift transfer case is for a four-wheel drive system, and has been updated with the latest GM engineering enhancements. It comes with Vespal pad inserts and an aluminum vent instead of plastic. It also features no hassle core return and is available in light duty, heavy duty, and super heavy duty applications.GM Genuine Parts are the true OE parts installed during the production of or validated by General Motors for GM vehicles. Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE).

Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Quality Vespal pad inserts and an aluminum vent for increased durability and reliability
Oil pump flouting sleeve for durability
Seal material and design provides hot and cold temperature durability
Plug and play installation saves time
GM-recommended replacement part for your GM vehicle's original factory component
Offering the quality, reliability, and durability of GM OE
Manufactured to GM OE specification for fit, form, and function
Some GM Genuine Parts may have formerly appeared as ACDelco GM Original Equipment (OE)
GM Genuine Parts are designed, engineered and tested to rigorous standards, and are backed by General Motors
GM Engineers design and validate OE parts specifically for your Chevrolet, Buick, GMC, or Cadillac vehicle
GM regularly updates production and service part designs to integrate new materials and technologies

Length22.8 in / 579 mm

Housing MaterialAluminum

Core Charge500.00

ClassificationOE

Height11.61 in / 295 mm

Shaft Quantity3

Width20.24 in / 514 mm

Shift OperationElectric

Housing ColorNatural

Weight147.6 lb / 45000 g / 45 kg / 1587 oz

Length22.8 in / 579 mm

Core Charge500.00

Height11.61 in / 295 mm

Width20.24 in / 514 mm

Housing ColorNatural

Housing MaterialAluminum

ClassificationOE

Shaft Quantity3

Shift OperationElectric

Weight147.6 lb / 45000 g / 45 kg / 1587 oz

36 Months/100,000 Miles/160,000 Kilometers Limited Warranty for Parts (plus Labor if installed by a GM dealer)

Please visit our warranty page on Gmparts.com for full warranty details.

Remember that driving conditions and how much the four-wheel drive is used can affect the rate of wear on transfer case fluid and components

Transfer cases experience wear over time
Transfer case fluid breaks down, becoming less effective as it thins and wears out
Debris can contaminate the fluid, accelerating wear if left too long
Transfer case components may become worn or damaged through regular use or exposure to extreme conditions and circumstances
Properly servicing your transfer case and related components can help prevent premature wear or damage
Follow the manufacturer's recommendations for maintenance and transfer case fluid change intervals
Check fluid levels and replace broken down or contaminated fluid in response to recommended intervals or signs of wear
Check transfer case mounting hardware and brackets, drivetrain driveshafts, U-joints, and carrier bearings if applicable, as wear could damage the transfer case
Keep an eye out for signs of wear or failure, and check the transfer case for leaks or damage as needed
Regularly inspect transfer case assemblies for signs of damage or wear and replace them if signs of damage are found

Replace or service transfer cases and transfer case components when you experience signs of wear, such as:

Leakage at transfer case gaskets or seals and low transfer case fluid levels
Abnormal vibration or noises, such as grinding, whining, popping, and clunking
Jumps in and out of four-wheel drive
Difficulty engaging four-wheel drive
No transmission of power to one or both sets of wheels

Certain automotive parts can be recycled and remanufactured for future use. These parts have a "core charge" that is used as a deposit on the portion of the part that can be reused. The reason for this charge is to encourage the return of your old part. When the recyclable component from your old part is returned to us, the charge is refunded to you.
